	Aluminium Alloys for mould applications

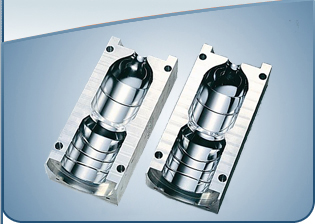

	Mecalu and Mecalu+ are high strength Al- alloys known for their high performance in certain areas of mold applications. Their typical application includes Blow Molding, Foam molding, Vacuum Forming, Rubber Molding and Injection Molding. These aluminium alloys are increasingly used over Steel for its inherent properties compared to steel such as 1/3rd density, high machinability, fourfold thermal conductivity and superior corrosion resistance.

»	Mecalu
»	Mecalu +

Tool & Die Steel

-	Hot work tool steel
-	Cold work & high speed steel
-	Plastic Mould Steel
-	Powder Metallurgy HSS
-	Aluminium Alloy

Rolling Mill rolls

-	Cold rolling mill
-	Hot rolling mill

Mandrel Bars for seamless tube production

-	PQF/MPM Rolling Mill
-	Assel Mill
-	Continuous Rolling Mill
-	Push Bench

Plant & Equipments

-	Sponge Iron Equipments
-	Power Plant Equipment
-	Propeller Shafts for Ships
-	Ram and Die Holders
-	Steel Plant Equipment

Aircraft Release Material

-	Stainless Steel
-	Aluminum- Alloy
-	Nickel- Alloy
-	Titanium- Alloy

Pipes Tubes & Hollow Sections

-	Carbon and Alloy Steel tubes
-	Stainless Steel tubes
-	Cold & Hot finished hollow sections
-	Cold drawn tubes

Finishing Equipment

-	Slitting Line
-	Cut-to-length line
-	Precision Levelers

Thermal condivity 4 times higher than steel, very good machiablilty with excellent surface finish, very good stability with high mechanical strength. Resist all currently used plastics, therefore not necessarliy need surface treatment. Can be anodised: please contact us.

Applications

Mechanical parts with high strength, heating plates, machine tables. Bottom plates for stamping or cutting transfer tools. Plastic moulds depending on injected materials: standard production or pilot production. All type of production: blowing, injection, thermo-compression, injection-blowing, deep vacuum stamping, etc.

Mecalu +

Applications (To be change)

High strength mechnical parts, machine tables. Production transfer tool bottom plates on high speed press. Plastic moulds depending on inujected material. standard production or pilot production. All types of production blowing. injection, thermo-compresssion, injection-blowing, deep vaccum stamping, etc.

Mechanical Properties

Tested in the LT direction for plates and L direction for bars (typical values)

Streched Hot Rolled Plates - T 651 Temper (for thickness 10-150 mm)

Thickness (mm)	U. T. S (MPa)	Y. S. 20% (MPa)	Elongation (%)	Hardnedd (Hd)
10	600	560	10,5	180
25	595	550	10	178
75	580	540	7,7	175
100	575	525	7,2	175
125	565	520	6,5	170
150	555	510	5	170

Streched or Cold compressed hot rolled Plates - T651/T652 Temper (for thickness 150-260 mm)

Thickness (mm)	U. T. S (MPa)	Y. S. 20% (MPa)	Elongation (%)	Hardnedd (Hd)
170	550	500	4.2	170
200	520	470	3,6	165
250	480	400	3	158

Cold compressed hot rolled Plates - T652 Temper (for thickness ≥ 260 mm)

Thickness (mm)	U. T. S (MPa)	Y. S. 20% (MPa)	Elongation (%)	Hardnedd (Hd)
300	470	430	2,8	150

Round bar streching / levelling

Diameter (mm)	U. T. S (MPa)	Y. S. 20% (MPa)	Elongation (%)
25-160	620	570	7%

Physical Properties

Thermal Condivicity (25 ° C) W / (m.k)	Coeff. of Thermal Expansion (20-100 ° C) k^-1	Young modulus MPa	Compression modulus MPa
160	23,5.10^-6	71000	73000
